ET8290B

Email Inquiry IconContact

General Description

The ET8290B is a high-efficiency, synchronous, current-mode, step-up converter with output disconnection.The ET8290B starts up from an input voltage as low as 1.9V, while providing inrush current limiting and output short-circuit protection. The integrated P-channel synchronous rectifier improves efficiency and eliminates the need for an external Schottky diode. This P-channel disconnects the output from the input during shutdown.

The 1.0MHz switching frequency allows small external components, while the internal compensation and soft-start minimize external component count. The ET8290B provides a compact solution for a 5V output, 3.1A load requirement, using a supply voltage down to 2.8V.

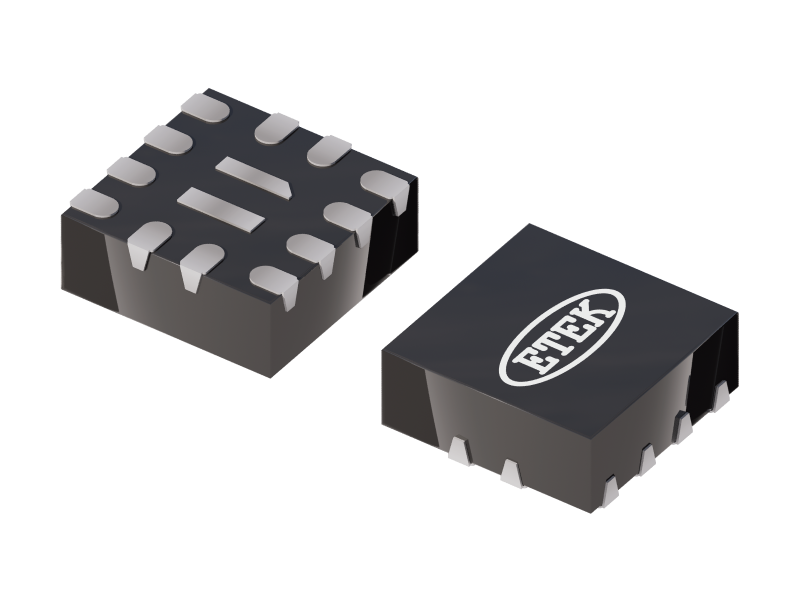

The ET8290B is available in QFN14 package.

Features

  • Up to 98% Efficiency
  • 1.9V to 5.5V Input Range
  • Adjustable Output Voltage from 2.5V to 5.5V
  • Internal Synchronous Rectifier
  • 1.0MHz Fixed Switching Frequency
  • 9A Typical Switch Current Limit
  • 43uA Quiescent Current
  • High Efficiency over Full Load Range
  • Internal Soft-start and Compensation
  • True Output Load Disconnect from Input
  • OCP, SCP, OVP and OTP Protection
  • Package: QFN14 (2mm×2mm); MSL: 1

Technical Documentation

Type Title Format Date
Datasheet ET8290B PDF 2026-11-17
