ET95101/H
General Description
ET95101 is a high performance devices for space limited portable applications highly integrated Li-Ion battery linear charger. The high input voltage range with input over-voltage protection supports low cost, non regulated adapters. The ET95101 has a power output that can charge the battery. If the average system load cannot fully charge the battery during the 10 hours security timer, you can parallel the system load with the battery.
The battery charging goes through the following three stages: regulation(pre-charge), constant current(CC) and constant voltage(CV).In all charging stages, the internal control loop will monitor the IC junction temperature, and when it exceeds the internal temperature threshold, it will reduce the charging current.
The charger power level and charging current sensing functions are fully integrated. The charger has high-precision current and voltage regulation loop and charging termination function. The charging current value can be programmed via an external resistor.
Features
- 1% charging voltage accuracy
- 10% charging current accuracy
- Support the application of ultra-low charging current (10mA to 250mA)
- Support minimum 1mA charging termination current
- Ultra low battery output leakage current: 75nA (maximum)
- 30V rated input voltage; With 6.5 V input over-voltage protection
- Input voltage dynamic power management
- 120 °C thermal conditioning; 150 °C thermal shutdown protection
- OUT short-circuit protection and ISET short-circuit detection
- Operating within JEITA range through battery negative temperature coefficient (NTC)—fast charging current in case of cold fault is halved, and voltage in case of hot fault is 4.06V
- Fixed 10 hours safety timer
- Automatic termination and timer disable mode for missing battery pack(TTDM)

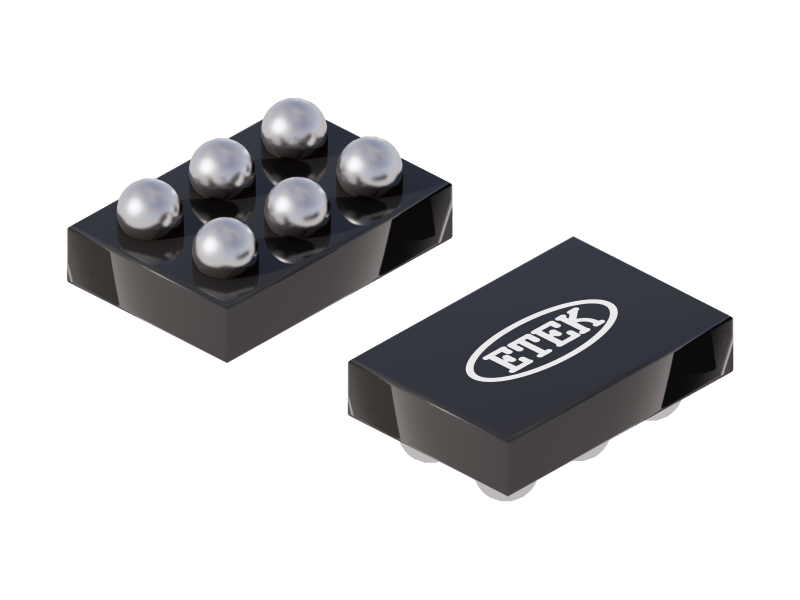

- Package: CSP6(1.30 mm * 0.9 mm); MSL: 1
