ETK6201
Contact
General Description

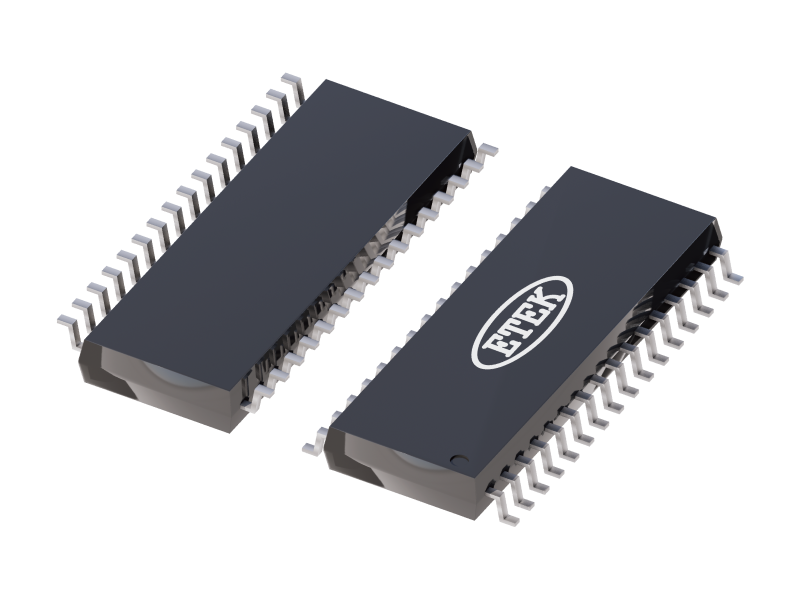

ETK6201 is an LED Controller driven on a 1/7 to 1/8 duty factor. 11 segment output lines, 6 grid output lines, 1 segment/grid output lines, one display memory, control circuit, key scan circuit are all incorporated into a single chip to build a highly reliable peripheral device for a single chip microcomputer. Serial data is fed to ETK6201 via a four-line serial interface. Housed in a SOP32 Package.
Specification
Sample
Features
- CMOS Technology
- Low Power Consumption
- Multiple Display Modes (12 segment, 6 Grid to 11 segments, 7 Grid), Max Support 77 LED
- Key Scanning (10×3 Matrix)
- 8-step Dimming Circuitry
- Serial Interface for Clock, Data Input, Data Output, Strobe Pins
- Available in SOP32 Package
Technical Documentation
| Type | Title | Format | Date |
|---|---|---|---|
| Datasheet | ETK6201 Datasheet | 2025-12-07 |
