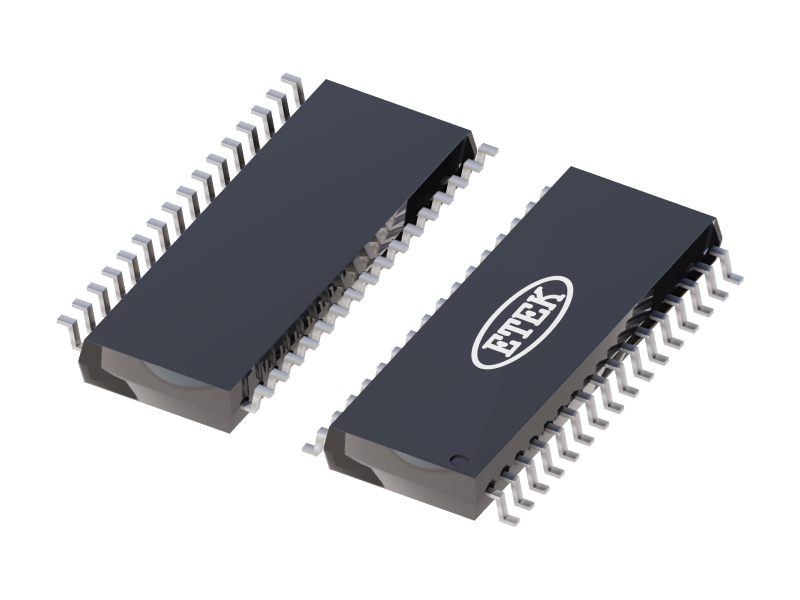

ET1629A
Contact
General Description
ET1629A is a matrix LED driver IC, it has 16 segment outputs and 8 grid outputs and 1 display storage unit and some control circuit. It inherits MCU digital interface, data latch and LED driver module. It is suitable for small LED display driver.
Specification
Sample
Features
- Display Mode: 16 Segs×8 Grids
- Gray adjustment: 8 duty cycles
- Three wire serial interface
- Built in RC oscillation
- Built in power on reset
- Package：SOP32（ET1629A），QFN32（ET1629AY）
- Tape Information: ET1629A-TP，ET1629AY-TP
Technical Documentation
| Type | Title | Format | Date |
|---|---|---|---|
| Datasheet | ET1629A Datasheet | 2025-11-07 |
