ET1620
Contact
General Description
ET1620 is a high reliability matrix LED driver IC with 8 segments output (SEG), 4 commons output (GRID), 2 segments/commons output (SEG/GRID), display memory, control circuit, key scan circuit , using 3-line serial interface communication.
Specification
Sample
Features
- High performance CMOS process, low power consumption
- Display Mode: 8 Segs x 6 Grids ~10 Segs x 4 Grids ,Max support 48 LED matrix
- Dimming adjustment: 8 step
- 3-line serial interface
- Built in RC oscillation

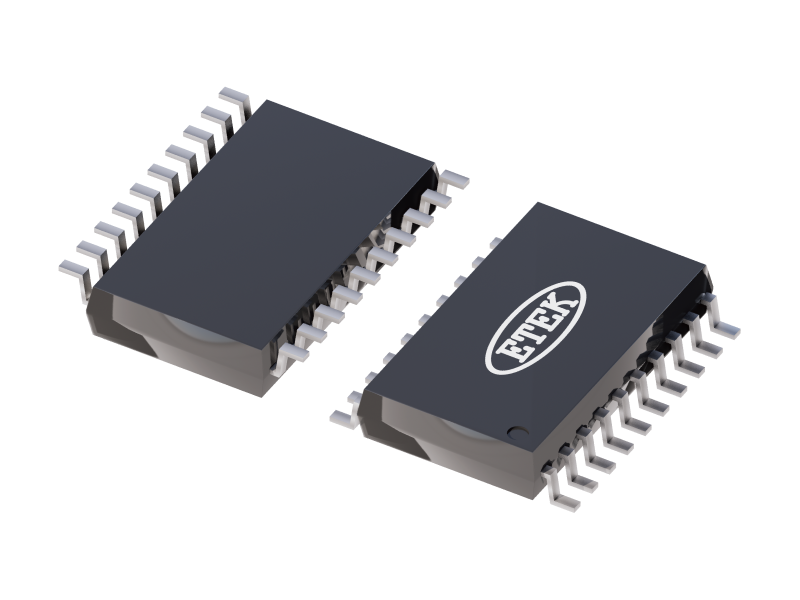

- Package: SOP20
Technical Documentation
| Type | Title | Format | Date |
|---|---|---|---|
| Datasheet | ET1620 Datasheet | 2025-12-07 |
