ET1616
Contact
General Description

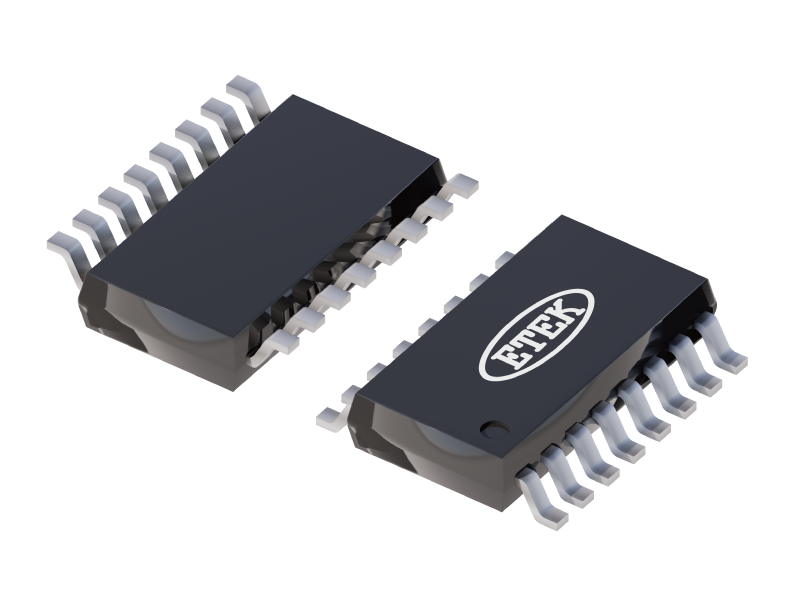

ET1616 is an LED Controller driver with 7 segment output lines, 4 grid output lines, one display memory, control circuit are all incorporated into a single chip to build a highly reliable peripheral device for a single chip microcomputer. Serial data is fed to ET1616 via a three-line serial interface, ET1616 pin assignments and application circuit are optimized for easy PCB Layout and cost saving advantages.
Specification
Sample
Features
- CMOS Technology
- Low Power Consumption
- Max 28 LED Display Matrix (7Segs × 4Grids)
- 8-step Dimming Circuitry
- 3-Serial Interface for Clock, Data Input/Output, Strobe Pins
- Built in RC oscillation
Technical Documentation
| Type | Title | Format | Date |
|---|---|---|---|
| Datasheet | ET1616 Datasheet | 2025-11-06 |
