ET6038
Contact
General Description
ET6038 is a with 36 independent constant current low resistance LED drive output channels, each channel has 256 steps PWM regulation function, the chip also has 16 steps global current regulation function, the maximum driving current of 42.6mA.
Specification
Sample
Features
- 36 constant current output channels
- I2C interface, four chip-address can be set
- Supply voltage 2.7V to 5.5V
- Maximum driving current up to 42.6mA
- Each circuit has 256 order PWM current adjustment function
- Output Current Adjusted through an External Resistor
- Open and short circuit detection function

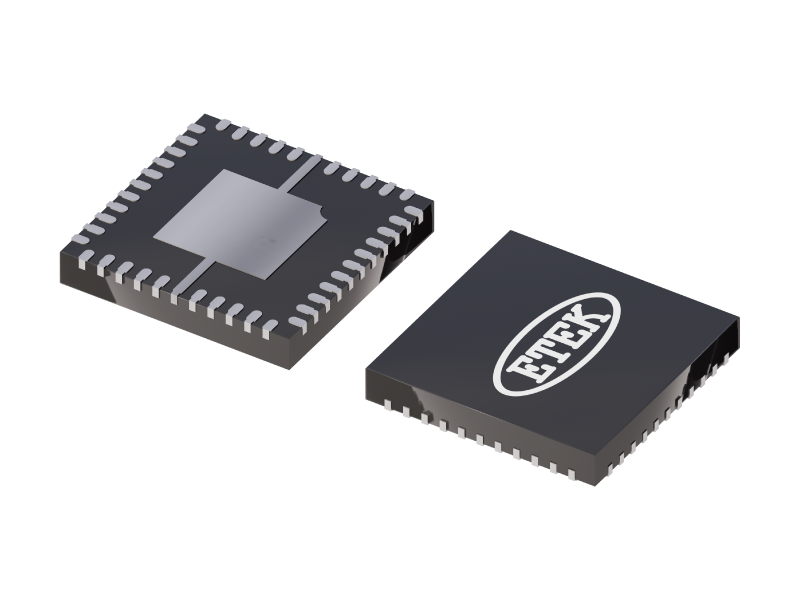

- Package: QFN44(ET6038Y) or LQFP48(ET6038Q)
