General Description
ET6934 is a constant Current LED Controller driver. 8CH constant current segment output lines, 16CH grid output lines. It integrates MCU digital interface, data latch and LED high voltage driver. ET6934 product adopts CMOS technology and is mainly used in small LED display driver.
Specification
Sample
Features
- CMOS technology;
- Support 1-16 scan application, the maximum application matrix is 8×16 (8SEG×16GRID);
- Seg constant current drive Global gray scale adjustable (constant current 16steps adjust);
- I2C interface;
- Build-in RC oscillation;
- Built-in power-on reset and low-voltage reset;

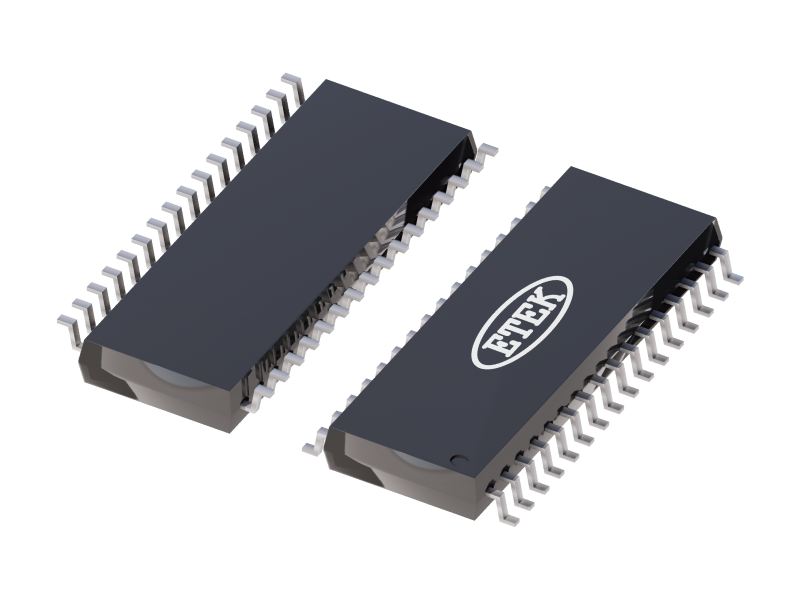

- Package: SOP28(ET6934M28), SOP32(ET6934M32), EQSOP28(ET6934S);
Technical Documentation
| Type | Title | Format | Date |
|---|---|---|---|
| Datasheet | ET6934 Datasheet | 2025-11-12 |
