车规 ET3715A30
General Description
The ET3715A30 is a high sensitivity and high-accuracy Omnipolar Hall effect switch IC that operates at an ultra-low voltage and low current consumption. The output voltage will be pulled low when this IC detects the magnetic flux density is larger than operate point(BOPN/BOPS) and the output voltage will recover to high until the magnetic flux density is smaller than the release point(BRPN/BRPS). Using this IC with a magnet makes it possible to detect the open / close status in various applications.
To achieve a high-density mounting the ET3715A30 uses a super-small DFN4 package.
The ET3715A30 is suitable for battery powered portable devices such as mobile phones and portable PCs etc. due to its low voltage operation and low current consumption, the average current consumption is only typ. 12μA with a 1.2V supply.
Features
Pole detection：Omnipolar pole
Output logic：Active low
Output form：CMOS output, no external pull-up resistor required
Operating Point：BOP = 3.0 mT typ.
Operating cycle：tCYCLE = 5.70 ms typ.
Current consumption：IDD = typ. 12.0 μA at 1.2 V
Power supply voltage range：VDD = 1.0 V to 3.5 V
Operation temperature range：TA = -40°C to +85°C
Lead-free (Sn 100%), halogen-free
Super small DFN4 (1mm x1mm) package
Applications
Open/Close detection for flip mobile phones
Smart cover for smart phones
Smart cover for portable PCs, tablet PCs
Digital video cameras and portable game consoles
Home appliances

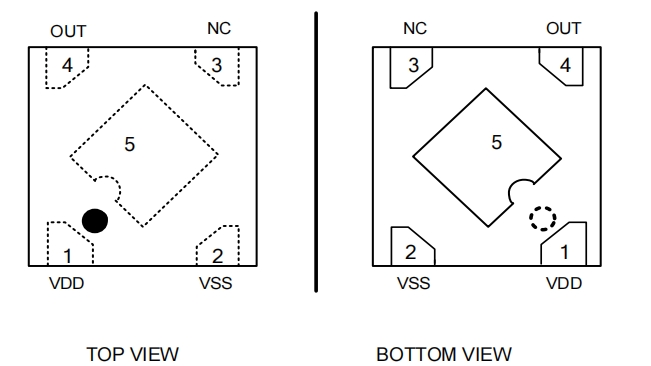

Pin Configuration

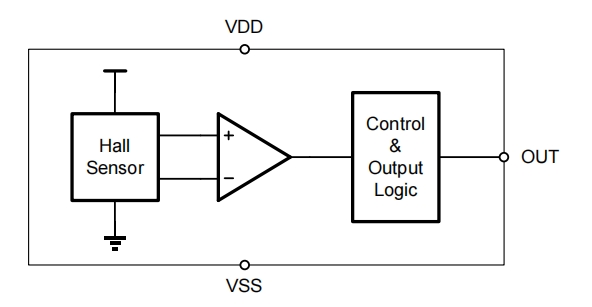

Block Diagram

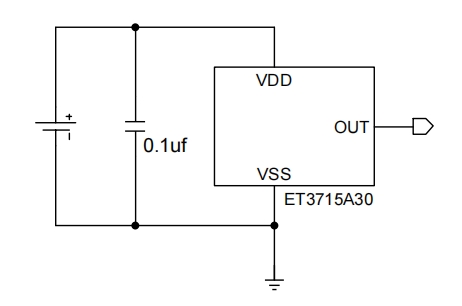

Application Circuits
