车规 ET5H6ADJ
General Description
ET5H6ADJ is a high input voltage and ultra high PSRR 300mA LDO with enable function that output adjustable from 1.0V~5.0V, which is designed specifically for portable battery-powered applications which require low quiescent current. The consumption of type 50uA ensures long battery life and dynamic transient boost feature improves device transient response for wireless communication applications.
ET5H6ADJ offered SOT89-5, SOT23-5, DFN6 packages.
Features
Wide input voltage range from 3V to 24V
Up to 300mA Load Current
Low IQ is 50µA typical
ADJ Output Voltage range 1.0V~5.0V
Very Low dropout is 330mV at 150mA Load @VOUT=3.3V
Excellent load/line transient response
Ultra High Ripple Rejection: 90dB at 1kHz
Packages are SOT89-5, SOT23-5, DFN6(2mm×2mm)

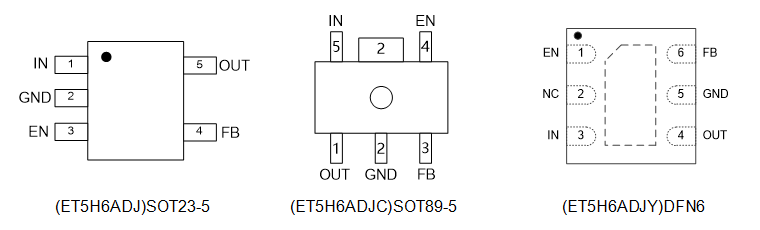

Pin Configuration

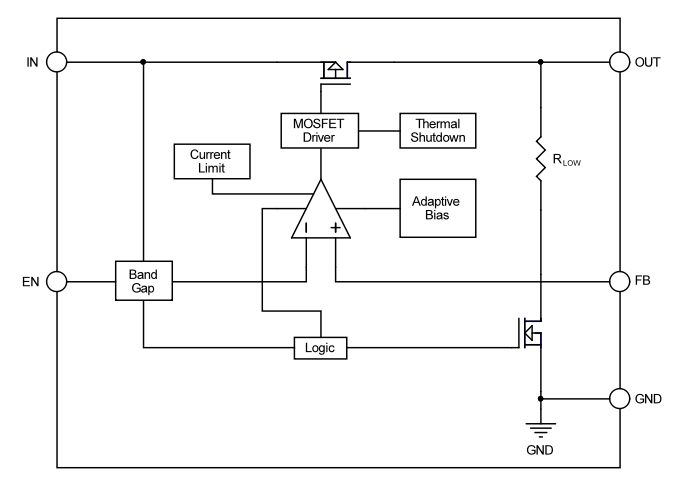

Block Diagram

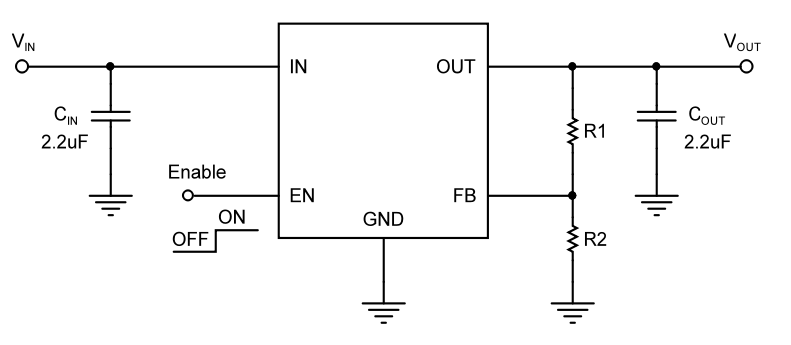

Application Circuits
